Opis
Huawei NE 20E-S2F Router uses the latest VRP8.0 platform, koja je ista platforma kao i Huawei Ne5000e. VRP operativni sistem prihvaća RDF (Otporan distribuirani okvir) Elastična distribuirana arhitektura. Kroz relativno odvojenu upravni avion, poslovni avion, Ravnina podataka i kontrolni avion, To uvelike poboljšava fleksibilnost, pouzdanost, Upravnike i proširenje cijelog sustava.
| Parametri | Preklopni kapacitet | Performanse prosljeđivanja | Fiksni portovi | Utora Količina | Veličina (V x Š x D) | Potrošnja energije | with Full Configuration |
| Netege20E-S2F | 320 Gbit/s | 163 MPs | 4 x 10 GE (SFP+) + 40 x GE (SFP) | 2 PICs | 89 x 442 x 220 mm (2 U) | 309 W (DC) | 335 W (AC) |
Huawei NE 20E-S2F Router Product Overview
Huawei NE 20E-S2F Router adopts a distributed processing architecture. The main control, prebacivanje, and forwarding are physically separated. The control plane and the service plane are separated to ensure that services and controls do not interfere with each other. Service switching is not affected during active / standby switching.
Huawei NE 20E-S2F Router provides reliability protection from multiple levels, including equipment-level, network-level, and business-level reliability. It forms a solution for the entire network, fully meeting the telecommunications-level reliability requirements, and is the cornerstone of building telecommunication-level services. Achieving 99.999% system availability

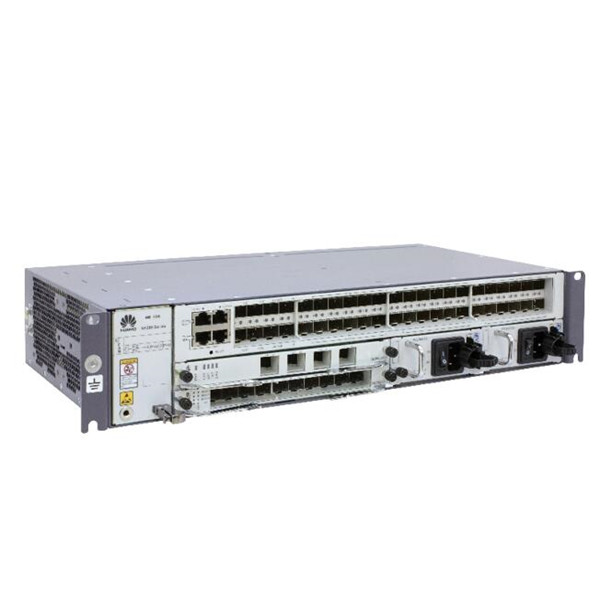

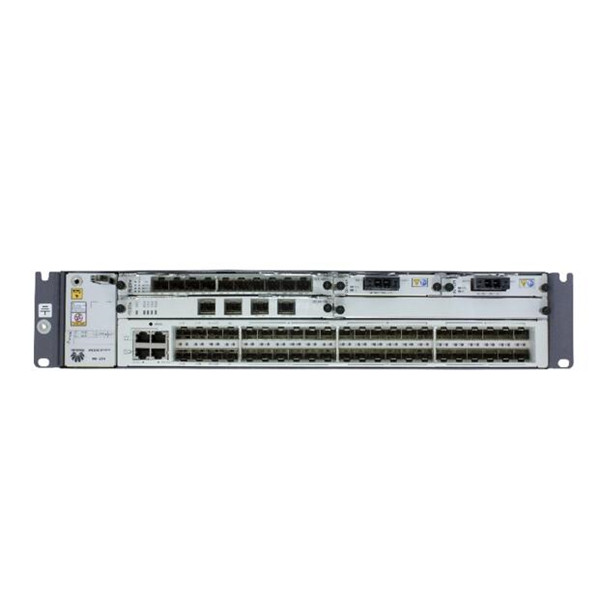

Huawei NE 20E-S2F Router Product Pictures
Huawei NE 20E-S2F Router Product Specifications
| Parametri | NetEngine20E-S2E | Netege20E-S2F | Netengine20E-S4 | Netelaine20e-s8 | Netelaine20E-S16 | Netelaine20E-S8A | Netelaine20E-S16A |
| Preklopni kapacitet | 160 Gbit/s | 320 Gbit/s | 320 Gbit/s | 960 Gbit/s | 960 Gbit/s | 2 Tbit/s | 2 Tbit/s |
| Performanse prosljeđivanja | 119 MPs | 163 MPs | 356 MPs | 356 MPs | 356 MPs | 452 MPs | 452 MPs |
| Fiksni portovi | 2 x 10 GE (SFP+) + 24 x GE (SFP) | 4 x 10 GE (SFP+) + 40 x GE (SFP) | – | – | – | – | – |
| Utora Količina | 2 PICs | 2 PICs | 2 MPUS | 2 MPUS | 2 MPUS | 2 MPUS | 2 MPUS |
| 1 NSP | 2 NSPS | 2 NSPS | 2 NSPS | 2 NSPS | |||
| 4 PICs | 8 PICs | 16 PICs | 8 PICs | 16 PICs | |||
| Veličina (V x Š x D) | 89 x 442 x 220 mm (2 U) | 89 x 442 x 220 mm (2 U) | 132 x 442 x 220 mm (DC, 3 U) | 222 x 442 x 220 mm (DC, 5 U) | 353 x 442 x 220 mm (8 U) | 222 x 442 x 220 mm (DC, 5 U) | 353 x 442 x 220 mm (8 U) |
| 175 x 442 x 220 mm (AC, 4 U) | 264 x 442 x 220 mm (AC, 6 U) | 264 x 442 x 220 mm (AC, 6 U) | |||||
| Potrošnja energije | 195 W (DC) | 309 W (DC) | 398 W (DC) | 645 W (DC) | 696 W (DC) | 645 W (DC) | 708 W (DC) |
| with Full Configuration | 219 W (AC) | 335 W (AC) | 456 W (AC) | 703 W (AC) | 740 W (AC) | 703 W (AC) | 752 W (AC) |
| Vrste sučelja | 100 GE, 50 GE, 40 GE, 25 GE, 10 GE, GE/FE, OC-3C / STM-1C POS, OC-12C / STM-4C POS, Kanalizirani OC-3 / STM-1 POS, i E1 / CE1 | ||||||
Huawei NE 20E-S2F Router Product Features
- Device-level reliability
Huawei NE 20E-S2F Router provides redundant backup of key components. The key components support technologies such as hot swap and hot backup, Non-Stop Routing (NSR), Neprekidno prosleđivanje (NSF), and ISSU to ensure uninterrupted business operation.
- Network-level reliability
Huawei NE 20E-S2F Router provides IP / LDP / VPN / TE fast rerouting, Hot-Standby, IGP, BGP, and multicast routing fast convergence, Virtual Router Redundancy Protocol (VRRP), TRUNK link Shared backup, 3.3ms fast detection of hardware BFD links, and MPLS / Ethernet OAM to ensure the stability of the entire network. It can provide end-to-end 200ms protection switching without service interruption.
- Reliable service level
VPN FRR and E-VRRP technologies, VLL FRR and Ethernet OAM technologies, and PW redundancy provided by NE20E-S can be used in L3VPN and L2VPN networking solutions to ensure redundant backup at the service level and make services stable and reliable. Without interruption.
Huawei NE 20E-S2F Router Product Ordering Info
| Tip | Opis |
| Ne20E-S osnovna konfiguracija | NE20E-S16 DC osnovna konfiguracija |
| NE20E-S16 AC osnovna konfiguracija | |
| NE20E-S8 DC osnovna konfiguracija | |
| Ne20E-S8 AC osnovna konfiguracija | |
| Ne20E-S4 DC osnovna konfiguracija | |
| Osnovna konfiguracija NE20E-S4 | |
| Ne20E-S2F DC osnovna konfiguracija | |
| Ne20E-S2F osnovna konfiguracija | |
| Ne20E-S2E DC osnovna konfiguracija | |
| Osnovna konfiguracija NE20E-S2E | |
| Mrežni procesor usluga (NSP-50-E, Nanesite za -40 ° C do 65 ° C scenarija) | |
| Mrežni procesor usluga (NSP-120-E, Nanesite za -40 ° C do 65 ° C scenarija) | |
| Mrežni procesor usluga (Nsp-a) | |
| Mrežni procesor usluga (Nsp-b) | |
| Ne20E-S line kartice | 1-PORT 40G BASE-CFP fizička interfejs kartica |
| 4-Port 10g baza LAN / WAN-SFP + fizičko sučelje kartice | |
| 2-Port 10g baza LAN / WAN-SFP + fizičko sučelje kartice | |
| 2-Port 10g baza LAN / WAN-SFP + Fizičko sučelje kartice H | |
| 1-Port 10g Base LAN / WAN-SFP + + 8-Port 100/1,000 Basno-X-SFP fizičko sučelje | |
| 10-Port 100/1,000 Basno-X-SFP fizičko sučelje | |
| 10-Port 100/1,000 Basno-x-sfp fizičko sučelje kartice h | |
| 8-Port 100/1,000 Basno-RJ45 fizičko sučelje kartice | |
| 4-PORT OC-3C / STM-1C POS-SFP fizičko sučelje kartice | |
| 2-Port OC-3C / STM-1C (ili 1-port OC-12C / STM-4C) Pos-SFP fizičko sučelje kartice | |
| 4-STM-1c POS-SFP kartica za fizičko sučelje sa kanaliziranim portom | |
| 1-STM-1c POS-SFP kartica za fizičko sučelje sa kanaliziranim portom | |
| 32-Port E1 kartica fizičkog sučelja (75 ohm) | |
| 32-Port E1 kartica fizičkog sučelja (120 ohm) | |
| 16-Port E1 kartica fizičkog sučelja (75 ohm) | |
| 16-Port E1 kartica fizičkog sučelja (120 ohm) | |
| Softver | Ne20E-S serija Base SW, Vrpca, i V800R007 |
| Ne20E-S serija 1588V2 | |
| Ne20E-S serija Mjera performansi (IP FPM) | |
| Ne20E-S serija Vxlan licenca | |
| Ne20E-S serija rn na r(n + 1) Pravo izdanje softvera iz RN do R(n + 1) |
Huawei NE 20E-S2F Router Product Applications
