HG8346R FTTH

Opis

HG8346R FTTH is GPON optical terminal with 4 FE Port 2 Voice Port 1 USB port and WiFi function

Model	Internet Ports	Glas(tel)	Router (PPPOE)	Wifi	Firmware language
HG8346R	4	2	podrška	yes	engleski

HG8346R FTTH Product Overview

HG8346R FTTH is an optical network terminal (ONT) in FTTH solution. By using EPON technology, ultra-broadband access is provided for home and SOHO users.
HG8346R FTTH gives wiFi USB Port two POTS ports, four FE Internet port. This model features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.

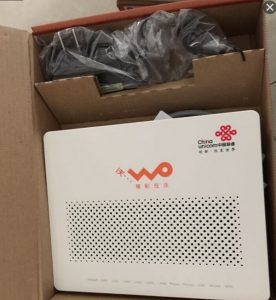

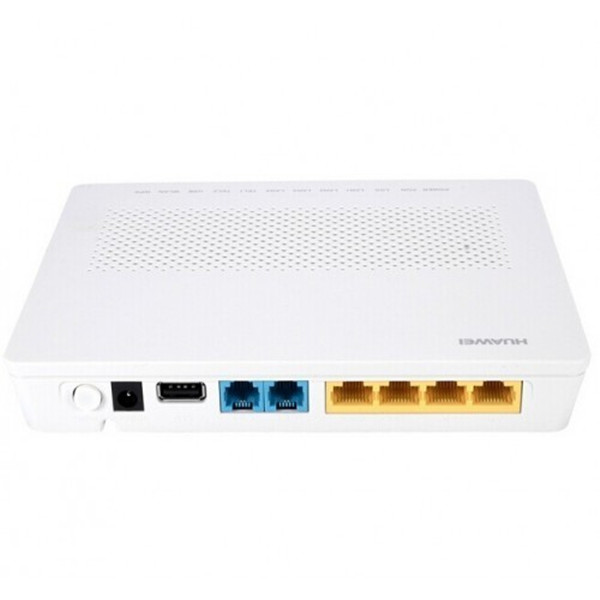

HG8346R FTTH Product Picture

HG8346R FTTH Product Specifications

Model	HG8346R
Luke	4FE+2POTS+1USB+WiFi
Indikatori	POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
Dimenzije (V x Š x D)mm	176 mm x 138.5 mm x 28 mm
Težina	< 500 g
Radna temperatura	0°C do +40°C
Radna vlažnost	5% RH to 95% RH (bez kondenzacije)
Ulaz adaptera za napajanje	100–240 V AC, 50–60 Hz
Napajanje sistema	11–14 V DC, 0.5 A
Statička potrošnja energije	5 W
Maksimalna potrošnja energije	15.5 W
Smartinterconnection	Pametna Wi-Fi pokrivenost (V300R015C10)SIP/H.248 automatsko pregovaranje
	Bilo koja luka bilo koja usluga
	Roditeljska pažnja (V300R015C00)
Smart O&M	Dijagnoza kvaliteta IPTV videa (V300R015C10)OMCI poruke promjenjive dužine
	Aktivno/pasivno otkrivanje i izolacija lažnog ONT-a
	Emulacija poziva, and circuit test and loop-line test
	PPPoE/DHCP simulacijsko testiranje
	WLAN emulacija
QoS	Ethernet port rate limitation802.1p priority

HG8346R FTTH Product Features

• Cuvanje energije

Indicator power saving

Power consumption reduction of idle components in the power-saving state

COCv4

• Smart O&M

OMCI poruke promjenjive dužine

Aktivno/pasivno otkrivanje i izolacija lažnog ONT-a

PPPoE/DHCP simulacijsko testiranje

Emulacija poziva, and circuit test and loop-line test

• Common O&M

OMCI/Web UI

Dual-system software backup and rollback

802.1ag Ethernet OAM

Optical link measurement and diagnosis

Loopback check

• Multicast

IGMP v2/v3 snooping

MLD v1/v2 snooping

Fast leave

VLAN tag translation, transparent transmission, and removal for downstream multicast packets

IGMP/MLD protocol packet rate limitation

HG8346R FTTH and More Models

EPON/ GPON ONT
GEPON ONT
HG8010 EPON ONT, 1*LAN engleski Firmware
HG8310 EPON ONT, 1*LAN engleski Firmware
HG8110 EPON ONT, 1*LAN+1*Glasov engleski firmver
HG8120 EPON ONT, 2*LAN+1*Glasov engleski firmver
HG8240 EPON ONT, 4*LAN+2*Voice English Firmware
HG8346R EPON ONT, 4*LAN+2*Glas+WIFI Engleski firmver
HG8245 EPON ONT, 4*LAN+2*Glas+WIFI Engleski firmver
GPON ONT

EG8120L GPON sa jednim GE portom, jedan POTS port, i jedan FE port.
HG8310M GPON ONT, 1*LAN engleski Firmware
HG8010/HG8010C GPON ONT, 1*LAN engleski Firmware
HG8311/HG8110/HG8110F GPON ONT, 1*LAN+1*VOICE Engleski Firmware SIP
HG8120C/HG8120F/HG8120/HG8321/HG8321R GPON ONT, 2LAN+VOICE Engleski Firmware SIP
HG8340M/HG8540/HG8040 GPON ONT, 4FE engleski Firmware SIP
HG8342/HG8342R/HG8342M/HG8240 GPON ONT, 4FE+2VOICE engleski Firmware SIP
HG8240/HG8240H GPON ONT, 4GE+2VOICE engleski Firmware SIP
HG8345R interna antena GPON ONT, 4FE+WIFI (unutrašnja antena)Engleski Firmware SIP
HG8345R vanjska antena GPON ONT, 4FE+WIFI (eksterna antena)Engleski Firmware SIP
HG8546M GPON ONT, 1GE+3FE+VOICE+WIFI, Engleski Firmware SIP
HG8346M/HG8245A/HG8346R GPON ONT, 4FE+2VOICE+WIFI (unutrašnja antena)Engleski Firmware SIP
HG8346R vanjska antena GPON ONT, 4FE+2VOICE+WIFI (eksterna antena)Engleski Firmware SIP
HG8245C2 GPON ONT, 2GE+2FE+2VOICE+WIFI engleski Firmware SIP
HG8245 vanjska antena GPON ONT, 4GE+2VOICE+WIFI ( eksterna antena)crna boja engleski SIP
HG8245H GPON ONT, 4GE+2VOICE+WIFI engleski firmver SIP ONT
HG8247 GPON/EPON ONT, 4GE+2VOICE+WIFI+CATV engleski Firmware SIP

HG8346R FTTH Product Applications

Izvini, nema dostupnog priloga !
