Opis
GYTA53-50~60Xn Optic Cable is Loose sleeve sloj stranded reinforced armored optički kabl
GYTA53-50~60Xn Optic Cable Product Overview
The structure of the GYTA53 fiber optic cable is that a 250μm optical fiber is sleeved into a loose tube made of high-modulus material, and the loose tube is filled with a waterproof compound. U centru jezgre je jezgra za jačanje metala, i za neke jezgrene kablove, sloj polietilena (PE) stiska se iz jezgre za jačanje metala. Labava cijev (i konop za punjenje) su uvijeni oko središnjeg jačaćeg jezgre kako bi tvorila kompaktna i zaobljena jezgra, a praznine unutar jezgra su ispunjene punjenjem koje blokira vodu. The plastic-coated aluminum strip (APL) is longitudinally wrapped and extruded with a layer of polyethylene inner sheath, and the double-sided plastic-coated steel strip (PSP) is longitudinally wrapped and extruded with polyethylene sheath to form a cable.

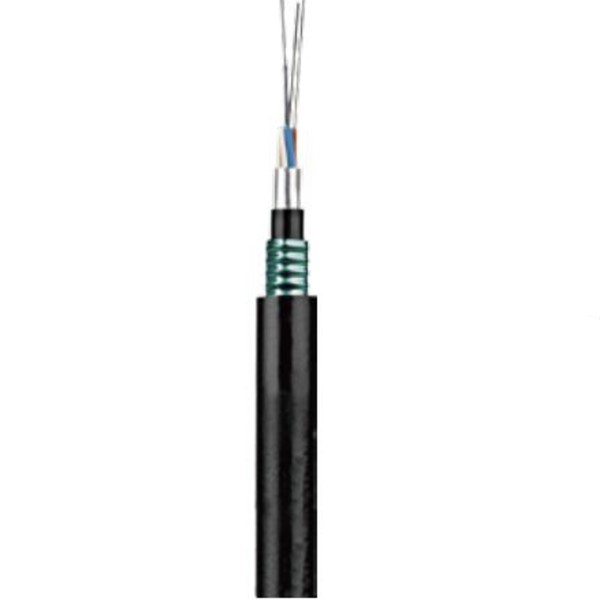

GYTA53-50~60Xn Optic Cable Product Pictures
GYTA53-50~60Xn Optic Cable Product Specifications
| Model optičkog kabla (u koracima od 2 vlakna) | Broj vlakana | Broj kućišta | Number of infill ropes | Referentna težina kabla (kg/km) |
Tensile force allowed Dugoročni/kratkoročni (N) |
Dozvoljena sila gnječenja Dugoročni/kratkoročni (N/100mm) |
Radijus savijanja Statički/Dinamički (mm) |
|
| GYTA53-2~6Xn | 2~6 | 1 | 5 | 177 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYTA53-8~12Xn | 8~12 | 2 | 4 | 177 | ||||
| GYTA53-14~18Xn | 14~18 | 3 | 3 | 177 | ||||
| GYTA53-20~24Xn | 20~24 | 4 | 2 | 177 | ||||
| GYTA53-26~30Xn | 26~30 | 5 | 1 | 177 | ||||
| GYTA53-32~36Xn | 32~36 | 6 | 0 | 177 | ||||
| GYTA53-38~48Xn | 38~48 | 4 | 1 | 194 | ||||
| GYTA53-50~60Xn | 50~60 | 5 | 0 | 194 | ||||
| GYTA53-62~72Xn | 62~72 | 6 | 0 | 204 | ||||
| GYTA53-74~84Xn | 74~84 | 7 | 1 | 239 | ||||
| GYTA53-86~96Xn | 86~96 | 8 | 0 | 239 | ||||
| GYTA53-98~108Xn | 98~108 | 9 | 1 | 275 | ||||
| GYTA53-110~120Xn | 110~120 | 10 | 0 | 275 | ||||
| GYTA53-122~132Xn | 122~132 | 11 | 1 | 312 | ||||
| GYTA53-134~144Xn | 134~144 | 12 | 0 | 312 | ||||
| GYTA53-146~216Xn | 146~216 | 13~18 | 5~0 | 312 | ||||
| Vrsta vlakana | Slabljenje | Bandwidth | Numerički otvor blende | Fiber Optic cable cut-off wavelength | ||||
| (+ 20 ℃) | @850nm | @1300nm | ||||||
| @850nm | @1300nm | @1310nm | @1550nm | |||||
| G.652 | — | — | ≤0,36dB/km | ≤0,22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0,40dB/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0,015 NA | — |
| 62.5/125µm | ≤3.3dB/km | ≤1.0dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0,015 NA | — |
GYTA53-50~60Xn Optic Cable Product Features
1. Precise control of the residual length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics.
2. The loose tube material itself has good water resistance and high strength, and the tube is filled with special ointment, which is critical to protect the optical fiber, and has good pressure resistance and flexibility.
3. PE sheath has good resistance to ultraviolet radiation and environmental stress cracking.
4. The following measures are adopted to ensure the waterproof performance of the optical cable:
(a) Single wire centre reinforcement;
(b) Loose cannula filled with special fiber paste;
(c) 100% core filling;
(d) GYTA double-sided plastic coated aluminum tape (APL) to improve the moisture permeability of fiber optic cables;
(e) Good water-blocking materials to prevent longitudinal water seepage of the optical cable.
GYTA53-50~60Xn Optic Cable Product and More Optic Cables
Nasuka labava jakna nemetalna ojačana jezgra neozlijeđenog optičkog optičkog plamena (Gyftzy)
Labavi rukav nasuki ojačani ojačani oklopni oklopni plamen optički kabl(Gytza53)
Labavi rukav ne-metalni ojačani ojačani oklopni oklopni oklopni optički kabl (Gyftza53)
Nasuki optički optički kabl za retardan vlakno (Gytzs)
Nasukana labava jakna neolike oklopna optički kabl (Gytza)
Nasuki labavi rukav nemetalni ojačani ojačni oklopni oklopni optički kabl (Cyta53)
Nasukan nemetalni ojačavajući jezgrovni obični oklopni optički kabl (Cyfty53)
Nasuka labav jakna nemetalna ojačana jezgra neodornog optičkog kabla vlakana (ZAJEDNO)
Labavi rukav nasukan nemetalni ojačani jezgrani optički kabl (Gyhty)
Nasuka labav jakna nemetalna ojačana jezgra neodornog optičkog kabla vlakana (Rođak)
Labavi rukav nasukan jednim tankim okruglim čeličnim žicama oklopnim vlaknima (Gyta53 + 33)
Labavi rukavac nasukan oklopnim oklopnim oklopnim optičkim kablom(Gyta53)
Labav rukavac nasukan običnom oklopnom optičkom kablu(Gyty53)
Labav rukavac nalik svjetlosno oklopnog oklopnog optičkog kabla (Suglasnički)
Nasukana labava jakna neometana vlakna optičkih kabla (Naglasiti)
GYTA53-50~60Xn Optic Cable Product Applications
- Laying modes: Direct Buried
- Long-distance communication
- local trunk line
- neki & computer networks system
GYTA53-50~60Xn Optic Cable Product Structure
