Opis
GYFTZY-26~30Xn Optic Cable is Loose sleeve stranded non-metallic reinforcing core non-armored flame retardant optical cable. It is a special type of fiber optic cable, where “GY” represents outdoor fiber optic cable, i “FTZY” represents the specific structure and purpose of fiber optic cable
GYFTZY-26~30Xn Optic Cable Product Overview
GYFTZY fiber optic cable is a non-metallic flame retardant fiber optic cable specially designed for outdoor environment, with waterproof, otporan na vlagu, ultraviolet-resistant and other characteristics, suitable for power systems, industrial areas and urban environments and other occasions with high requirements for fire protection and mechanical strength.
The structure of GYFTZY fiber optic cable includes the following main parts:
- Center Reinforcement: Non-metallic materials (npr. FRP) avoid the effects of lightning strikes and electromagnetic interference, while simplifying the installation process and eliminating the need for grounding treatment
- Loose tubes: Loose tubes made of high-modulus polyester material are filled with a water-repellent compound to protect the fiber from moisture ingress
- Filling: The gaps in the cable core are filled with water-blocking fillers to ensure the water-blocking performance of the fiber optic cable
- Sheath : The outer layer is made of flame-retardant polyethylene material, which has good flame retardant performance and weather resistance

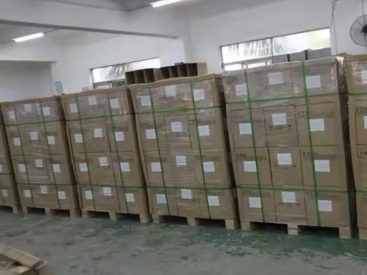

GYFTZY-26~30Xn Optic Cable Product Pictures
GYFTZY-26~30Xn Optic Cable Product Specifications
| Fiber optic cable model (u koracima od 2 vlakna) |
Broj vlakana | Broj kućišta | Number of infill ropes | Referentna težina kabla (kg/km) | Zatezna sila je dozvoljena Dugoročni/kratkoročni (N) |
Dozvoljena sila gnječenja Dugoročni/kratkoročni (N/100mm) |
Radijus savijanja Statički/Dinamički (mm) |
|
| GYFTZY-2~6Xn | 2~6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~144 | 12 | 0 | 228 | ||||
| Vrsta vlakana | Attenuation （+20℃） | Bandwidth | Numerički otvor blende | Talasna dužina preseka optičkog kabla | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0,36dB/km | ≤0,22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0,40dB/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2db / km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0,015 NA | — |
| 62.5/125µm | ≤3.5db / km | ≤1.2db / km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0,015 NA | — |
GYFTZY-26~30Xn Optic Cable Product Features
• Very good mechanical i temperaturu properties
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with a special straste to strrotect the optical fiber
• Special sheath material with excellent flame retardant strroperties
• Good compression resistance and softness
• The following measures are taken to ensure the waterproof strerformance of the cable:
– Single non-metallic center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling
GYFTZY-26~30Xn Optic Cable Product and More Optic Cables
Labavi rukav nasuki ojačani ojačani oklopni oklopni plamen optički kabl(Gytza53)
Labavi rukav ne-metalni ojačani ojačani oklopni oklopni oklopni optički kabl (Gyftza53)
Nasuki optički optički kabl za retardan vlakno (Gytzs)
Nasukana labava jakna neolike oklopna optički kabl (Gytza)
Nasuki labavi rukav nemetalni ojačani ojačni oklopni oklopni optički kabl (Cyta53)
Nasukan nemetalni ojačavajući jezgrovni obični oklopni optički kabl (Cyfty53)
Nasuka labav jakna nemetalna ojačana jezgra neodornog optičkog kabla vlakana (ZAJEDNO)
Labavi rukav nasukan nemetalni ojačani jezgrani optički kabl (Gyhty)
Nasuka labav jakna nemetalna ojačana jezgra neodornog optičkog kabla vlakana (Rođak)
Labavi rukav nasukan jednim tankim okruglim čeličnim žicama oklopnim vlaknima (Gyta53 33)
Labavi rukavac nasukan oklopnim oklopnim oklopnim optičkim kablom(Gyta53)
Labav rukavac nasukan običnom oklopnom optičkom kablu(Gyty53)
Labav rukavac nalik svjetlosno oklopnog oklopnog optičkog kabla (Suglasnički)
Nasukana labava jakna neometana vlakna optičkih kabla (Naglasiti)
GYFTZY-26~30Xn Optic Cable Product Applications
- Power system: As the guide cable of the power optical cable, it is connected with the ADSS and OPGW optical cables and introduced into the equipment room 2.
- Long-distance communication and local communication: suitable for fire retardant, strong electromagnetic interference and lightning protection environments3.
- Tunnels, railways, itd.: Environments that require flame retardant 2.
GYFTZY-26~30Xn Optic Cable Product Structure
