Opis

800G QSFP-DD800 DR8 is designed for use in 800 Gigabit Ethernet links on up to 500m of single mode fiber.

800G QSFP-DD800 DR8 Product Overview

The module is compliant with the QSFP-DD MSA and IEEE 802.3bs.The optical transceiver is RoHS compliant. Osim toga, it complies with the latest releases of the QSFP-DD800 MSA. Firmware supports CMIS 5.0 and newer release. We offer transceivers for DR8, 2xDR4, 2xFR4 and 2xLR4 interfaces. Our vertical integration for optical engines enables leading performance and power consumption.

The goal is to define pluggable low-cost optical modules for data center applications with short-range 800G transmission, including 8X100G and 4X200G specifications, with transmission distances including 100m, 500m, and 2km. There are currently some views in the industry that 800G transmission needs will emerge in 2021, and the market will begin to mature by 2023. Correspondingly, there is a QSFP-DD800 MSA optical module working group led by US communications giant Broadcom and Cisco to promote the standardization of 800G optical modules and related connectors in QSFP-DD format

800G OSFP optical module includes two architecture solutions, 4x100Gx2 and 8X100G. In addition to the traditional EML design, it also adopts silicon-based solution to meet short-distance transmission needs. The products of this series comply with IEE802.3ck and OSFP MSA standards, and support CMIS4.0. Products are mainly used in 800G Ethernet, data centers and cloud networks.

800G QSFP-DD800 DR8 Product Pictures

800G QSFP-DD800 SR8 price and specs yccict800G OSFP DR8 good price ycict

800G QSFP-DD800 DR8 price and specs ycict800G QSFP-DD800 DR8 good quality ycict

800G QSFP-DD800 DR8 Product Specifications

Brzina prenosa podataka 850Gb/s
Razdaljina 500m
Temperatura kućišta 0~70℃
Napon napajanja 3.3V
Predajnik EML
Prijemnik PIN
Talasna dužina 1310nm
Konektor MPO-16
Potrošnja energije (Max) 16W

800G QSFP-DD800 DR8 Product Features

  • Supports the reaches of 500m, 2km and 10km
  • Supports 8x100GbE and 2x400GbE breakout applications
  • Compliant with IEEE P802.3ck D3.0 and IEEE 802.3cu-2021 standards
  • Compliant with QSFP-DD800 MSA HW Rev 6.01 Type 2A with MPO-16 connector

800G QSFP-DD800 DR8 and More Models

800G OSFP 2xLR4
800G OSFP DR8
800G OSFP DR8++
800G OSFP DR8+
800G QSFP-DD800 2xLR4
800G QSFP-DD800 DR8+
800G QSFP-DD800 DR8++
800G QSFP-DD800 SR8
800G QSFP-DD800 DR8
800G QSFP-DD800 2xFR4
800G OSFP 2xFR4

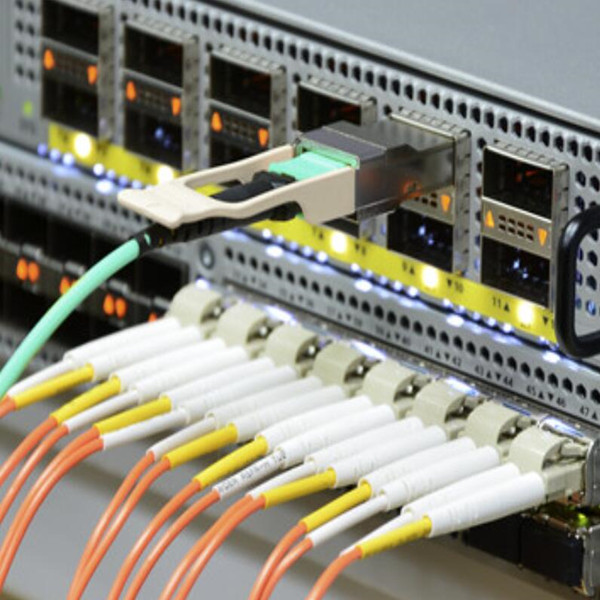

800G QSFP-DD800 DR8 Product Applications
