বর্ণনা
Stainless Steel Tube Optical Cable is one kind of seamless tube, meeting requirements of YD/T901-2001 in terms of stretching, flattening, প্রভাব, repeated bending, twisting, winding, wear, ইত্যাদি.
Stainless Steel Tube Optical Cable Product Overview
is one kind of seamless tube, which is made of stainless steel, after laser longitudinal welding and jelly filling in the middle. With marvelous performance of longitudinal water resistance, the tube is perfect to maintain good protection of optical fiber. It is especially designed for harsh environments, and can be used for various applications from oil well to military, underwater, fire resistant, and anti-rodent facilities etc. It is suitable for the direct use or basis use or basic optical units of fiber cable.

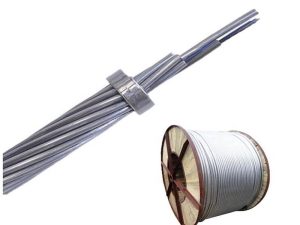

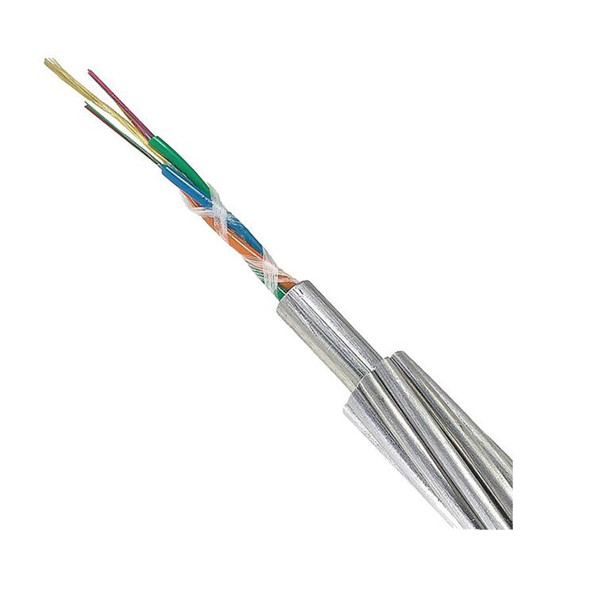

Stainless Steel Tube Optical Cable Product Pictures
Stainless Steel Tube Optical Cable Product Specifications
| জি.652 | G.655 | 50/125 μm | 62.5 / 125 μm | ||
| Attenuation (+ 20 ° C) | @ 850nm | ≤3.0dB / কিমি | ≤3.0dB / কিমি | ||
| @ 1300nm | ≤1.0dB / কিমি | ≤1.0dB / কিমি | |||
| @ 1310nm | ≤0.36dB / কিমি | ||||
| @ 1550nm | ≤0.22dB / কিমি | ≤0.23dB / কিমি | |||
| ব্যান্ডউইথ (Class A) | @ 850 | ≥ 500MHZ · km | ≥ 500MHZ · km | ||
| @ 1300 | ≥1000MHZ · km | ≥600MHZ · km | |||
| Numerical aperture | 0.200 ± 0.015NA | 0.275 ± 0.015 যে | |||
| Cable cut-off wavelength | ≤1260nm | ≤1480nm |
| Fiber core number | structure size | Cable weight | Allow tension (এন) | Allowing crush force (এন) | |
| Diameter d | Wall thickness t | কেজি / কিমি | দীর্ঘ মেয়াদী / short-term | দীর্ঘ মেয়াদী / short-term | |
| 1 | 0.9 | 0.18 | 3.38 | 140/280 | 2000/4000 |
| 2 | 1.2 | 0.18 | 4.95 | 160/320 | 2000/4000 |
| 4 | 1.35 | 0.18 | 5.75 | 250/500 | 2000/4000 |
| 6 | 1.5 | 0.18 | 6.58 | 270/540 | 2000/4000 |
| 8 | 1.8 | 0.2 | 8.99 | 350/700 | 1000/2000 |
| 12 | 2 | 0.2 | 10.27 | 400/800 | 1000/2000 |
| twenty four | 2.4 | 0.2 | 12.88 | 500/1000 | 1000/2000 |
| 36 | 2.8 | 0.2 | 15.7 | 600/1200 | 1000/2000 |
| 48 | 3.4 | 0.3 | 26.9 | 650/1300 | 1000/2000 |
| 72 | 4.1 | 0.3 | 32.39 | 800/1800 | 1000/2000 |
| 96 | 4.6 | 0.3 | 36.34 | 900/1800 | 1000/2000 |
Stainless Steel Tube Optical Cable Product Features
- ছোট আকার, good street performance, can withstand large tensile force, super side pressure.
- Waterproof, moisture-proof, rat bite-proof, no rust.
- Resistant to weak acid, weak alkali and salt corrosion.
- Non-toxic, flame retardant, fire resistant, explosion-proof.
- Good temperature performance, high cold resistance, high temperature.
- Optimize the design of transmission lines and save electric energy
- Photoelectric integration, transmitting information while transmitting electric energy, and detecting the working status of the line
- Optical fiber composite in the wire, to eliminate optical fiber strand and wire disconnection accidents caused by lightning on the ground line
- It will not cause the optical cable to suffer galvanic corrosion or cable damage and fiber breaking accidents caused by the action of field strength
- There is no hidden danger caused by additional line load added to the original route
Stainless Steel Tube Optical Cable Product Applications
- Telecommunication network construction
- Construction of communication base stations in rural and urban remote areas
- Fiber-optic access to urban residential communities and buildings
- Security monitoring project
- Other occasions where information and electricity are required at the same time
Stainless Steel Tube Optical Cable Product Topology
