Huawei S5731-L4P2ST-RUA Switch is all-gigabit Ethernet switch based on the innovative architecture with 4x 10/100/1000Base-T ports (PoE++),1 x GE SFP port, 1 x 10/100/1000BASE-T port PoE++
Huawei S5731-L4P2ST-RUA Switch Product Overview
Huawei S5731-L4P2ST-RUA Switch is all-gigabit Ethernet switch based on the innovative architecture with Forwarding performance: 9 Mpps এবং স্যুইচিং ক্ষমতা: 52 জিবিপিএস. The model offers all-gigabit data access capabilities. একই সময়ে, the innovative optical/electrical PoE is supported, and the central switches provide more than 1000 m PoE power for remote unit. The remote units are connected to the central switch through optical cables or optical-electrical hybrid cables, which does not require planning, configuration, management, and plug-and-play. When a device is expanded or faulty, replace the device with a new one, simplifying network planning, স্থাপনা, and routine O&এম. S5731-L4P2ST-RUA can be widely used in enterprise offices, education, হোটেল, এবং স্বাস্থ্যসেবা, helping enterprises build green and low-carbon buildings.

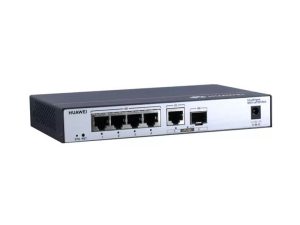

Huawei S5731-L4P2ST-RUA Switch Product Pictures
Huawei S5731-L4P2ST-RUA Switch Product Specifications
| পণ্যের ধরণ | CloudEngine S5731-L4P2HW-RUA | CloudEngine S5731-L4P2HT-RUA | CloudEngine S5731-L4T2S-RUA | CloudEngine S5731-L4P2S-RUA | CloudEngine S5731-L4T2ST-RUA | CloudEngine S5731-L4P2ST-RUA |
| ফরোয়ার্ডিং কর্মক্ষমতা | 9 এমপিএস | 9 এমপিএস | 9 এমপিএস | 9 এমপিএস | 9 এমপিএস | 9 এমপিএস |
| সুইচিং ক্ষমতা2 | 12 Gbit/s | 12 Gbit/s | 12 Gbit/s | 12 Gbit/s | 12 Gbit/s | 12 Gbit/s |
| আপলিংক পোর্ট | 1 x GE SFP (হাইব্রিড), 1 x GE SFP (হাইব্রিড) | 1 x GE SFP (হাইব্রিড), 1 এক্স 10/100/1000 Base-T Ethernet port | 1 x GE SFP (built-in SC optical module), 1 x GE SFP | 1 x GE SFP (built-in SC optical module), 1 x GE SFP | 1 জিই এসএফপি, 1 এক্স 10/100/1000 বেস-টি ইথারনেট পোর্ট | 1 জিই এসএফপি, 1 এক্স 10/100/1000 বেস-টি ইথারনেট পোর্ট |
| ডাউনলিংক পোর্ট | 4 এক্স 10/100/1000 বেস-টি ইথারনেট পোর্ট | 4 এক্স 10/100/1000 বেস-টি ইথারনেট পোর্ট | 4 এক্স 10/100/1000 বেস-টি ইথারনেট পোর্ট | 4 এক্স 10/100/1000 বেস-টি ইথারনেট পোর্ট | 4 এক্স 10/100/1000 বেস-টি ইথারনেট পোর্ট | 4 এক্স 10/100/1000 বেস-টি ইথারনেট পোর্ট |
| Power Supply Type | AC/DC adapter or optical-electrical PoE | AC/DC adapter, PoE or optical-electrical PoE | AC/DC adapter | AC/DC adapter | AC/DC adapter | AC/DC adapter |
| PoE++ | PoE++ | PoE++ | N/A | PoE++ | N/A | PoE++ |
Huawei S5731-L4P2ST-RUA Switch Product Features
- Huawei pioneered the optical-electrical PoE technology and continuously innovated to drive the transformation of transmission media on campus networks. It introduced optical-electrical hybrid cables to provide ultra-long-distance, high-power PoE power supply and provide ultra-high bandwidth access capabilities.
- The remote units of PoE module support PoE++ and provides data access and power supply for terminals such as Wi-Fi 6 APs, IP cameras, and IP phones.Some remote modules can provide power supply based on optical-electrical hybrid cable. এইভাবে, the power supply is centralized and the network is disconnected from the power supply.
- Based on the simplified architecture, the access switches splits into the central switches and the remote units. The remote units function as the port expansion module of the central switch to flexibly expand the port capacity of the central switch. One device is a network.
Huawei S5731-L4P2ST-RUA Switch and More Models
CloudEngine S5731-L8T2ST-RUA 8x 10/100/1000Base-T ports, 1 x GE SFP port, 1*10/100/1000BASE-T port
Huawei S5731-L4P2ST-RUA Switch Ordering Info
| S5731-L4P2HW-RUA | CloudEngine S5731-L4P2HW-RUA (4*10/100/1000বেস-টি পোর্ট, PoE++, 2*GE hybrid optical- electrical SFP ports, এসি ক্ষমতা, power adapter) |
| CloudEngine S5731- L4T2S-RUA | CloudEngine S5731-L4T2S-RUA (4*10/100/1000বেস-টি পোর্ট, 1*GE SFP port, 1*GE port with an SC connector, TX1310 nm/RX1490 nm, এসি ক্ষমতা, power adapter) |
| CloudEngine S5731- L4P2S-RUA | CloudEngine S5731-L4P2S-RUA (4*10/100/1000বেস-টি পোর্ট, PoE++, 1*GE SFP port, 1*GE port with an SC connector, TX1310 nm/RX1490 nm, এসি ক্ষমতা, power adapter) |
| CloudEngine S5731- L4T2ST-RUA | CloudEngine S5731-L4T2ST-RUA (4*10/100/1000বেস-টি পোর্ট, 1*GE SFP port, 1*10/100/1000BASE-T port, এসি ক্ষমতা, power adapter) |
| CloudEngine S5731- L4P2ST-RUA | CloudEngine S5731-L4P2ST-RUA (4*10/100/1000বেস-টি পোর্ট, PoE++, 1*GE SFP port, 1*10/100/1000BASE-T port, এসি ক্ষমতা, power adapter) |
| CloudEngine S5731- L4P2HT-RUA | CloudEngine S5731-L4P2HT-RUA (4*10/100/1000বেস-টি পোর্ট, PoE++, 1*GE hybrid optical- electrical SFP port, 1*10/100/1000BASE-T port, PoE input) |
| CloudEngine S5731- L8T2ST-RUA | CloudEngine S5731-L8T2ST-RUA (8*10/100/1000বেস-টি পোর্ট, 1*GE SFP port, 1*10/100/1000BASE-T port, এসি ক্ষমতা, power adapter) |
| CloudEngine S5731- L8P2ST-RUA | CloudEngine S5731-L8P2ST-RUA (8*10/100/1000বেস-টি পোর্ট, PoE+, 1*GE SFP port, 1*10/100/1000BASE-T port, এসি ক্ষমতা, power adapter) |
| CloudEngine S5731- L8P2HT-RUA | CloudEngine S5731-L8P2HT-RUA (8*10/100/1000বেস-টি পোর্ট, PoE+, 1*GE hybrid optical- electrical SFP port, 1*10/100/1000BASE-T port, PoE input) |
| 12W Power adapter | Power adapter for non-PoE models |
| 90W PoE Power adapter 1 | PoE Power adapter with Euroblock connector for S5731-L4P2HW-RUA |
| 90W PoE Power adapter 2 | PoE power adapter for S5731-L4P2S-RUA & S5731-L4P2ST-RUA |
| 150W PoE Power adapter | PoE power adapter for S5731-L4P2HT-RUA & 8-port PoE models |
Huawei S5731-L4P2ST-RUA Switch Product Applications
