বর্ণনা
Cisco WS-C2960X-24PS-L Switch provides 24 ports and a transmission rate of up to 1000Mbps, it can meet the information exchange requirements of large networks. একই সময়ে, the Cisco WS-C2960X-24PS-L has a built-in 600MHz dual-core CPU with dual power supplies and cooling fans, and both upstream and downstream ports support NetFlo
Cisco WS-C2960X-24PS-L Switch General Introduction
The Cisco 2960 Series Intelligent Ethernet Switch is a new, fixed-configuration, stand-alone family of devices. They provide desktop Fast Ethernet and Gigabit Ethernet connectivity for enhanced LAN services for entry-level enterprise, mid-market, and branch office networks. The integrated security features of the Catalyst 2960 সিরিজ, includes Network Admission Control (NAC), Advanced Quality of Service (QoS), and resiliency, provide intelligent services at the edge of the network.

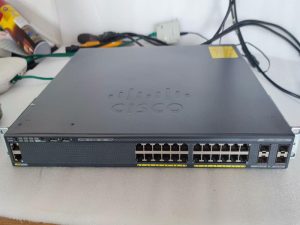

Cisco WS-C2960X-24PS-L Switch Product Pictures
Cisco WS-C2960X-24PS-L Switch Datasheet
| Product Type | Network Management Switch |
| আবেদনের স্তর | 2 স্তর |
| সংক্রমণ হার | 10/100/1000এমবিপিএস |
| প্রসেসর | APM86392 600MHz dual core |
| Product memory Flash memory | 128এমবি |
| DRAM memory | 512এমবি |
| Exchange mode | storage-forward |
| ব্যাকপ্লেন ব্যান্ডউইথ | 108জিবিপিএস |
| প্যাকেট ফরওয়ার্ডিং হার | 71.4Mpps error correction |
| Port parameter | |
| বন্দর কাঠামো | non-modular |
| পোর্টের সংখ্যা | 28 |
| পোর্ট বিবরণ | 24 10/100/1000 interfaces, 4 SFP interfaces |
| Transmission mode | Full-duplex/half-duplex adaptive |
| Other parameters | |
| Power supply voltage | AC 100-240V, 50-60Hz |
| পাওয়ার সাপ্লাই | 370ডব্লিউ |
| Product size | 45×368×445mm |
| Product weight | 5.8কেজি |
| ব্যর্থতা মধ্যে সময় মানে | 324,280 ঘন্টার |
Cisco WS-C2960X-24PS-L Switch Related Models
|
Catalyst 3560-X Series |
Catalyst 3750-X Series |
প্রভাবক 3850 সিরিজ |
|
|
WS-C3560X-24T-L/S/E |
WS-C3750X-24T-L/S/E |
WS-C3850-24T-L |
WS-C3850-48XS-S |
|
WS-C3560X-24P-L/S/E |
WS-C3750X-24P-L/S/E |
WS-C3850-24T-S |
WS-C3850-24XS-S |
|
WS-C3560X-48T-L/S/E |
WS-C3750X-48T-L/S/E |
WS-C3850-48T-S |
WS-C3850-24XS-E |
|
WS-C3560X-48P-L/S/E |
WS-C3750X-48P-L/S/E |
WS-C3850-24P-L |
WS-C3850-24XU-L |
|
WS-C3560X-48PF-L/S/E |
WS-C3750X-48PF-L/S/E |
WS-C3850-24P-S |
WS-C3850-24XU-S |
|
Catalyst 3560V2 Series |
Catalyst 3750V2 Series |
WS-C3850-48P-L |
WS-C3850-12XS-S |
|
WS-C3560V2-24TS-S/E |
WS-C3750V2-24TS-S/E |
WS-C3850-48U-L |
WS-C3850-12S-S |
|
WS-C3560V2-48TS-S/E |
WS-C3750V2-48TS-S/E |
WS-C3850-24U-L |
WS-C3850-24T-E |
|
WS-C3560V2-24PS-S/E |
WS-C3750V2-24PS-S/E |
WS-C3850-24S-S |
WS-C3850-48T-E |
|
WS-C3560V2-48PS-SE/E |
WS-C3750V2-48PS-S/E |
WS-C3850-48F-L |
|
|
Catalyst 3560G Series |
Catalyst 3750G Series |
Cayalyst 2960L Series |
|
|
WS-C3560G-24TS-S/E |
WS-C3750G-12S-S/E |
WS-C2960L-8TS-LL |
WS-C2960L-24TS-AP |
|
WS-C3560G-48TS-S/E |
WS-C3750G-24TS-S1U |
WS-C2960L-8PS-LL |
WS-C2960L-24PS-AP |
|
WS-C3560G-24PS-S/E |
WS-C3750G-24PS-S/E |
WS-C2960L-16TS-LL |
WS-C2960L-48TS-AP |
|
WS-C3560G-48PS-S/E |
WS-C3750G-48PS-S/E |
WS-C2960L-16PS-LL |
WS-C2960L-48PS-AP |
Cisco WS-C2960X-24PS-L Switch Features
1,Automatic QoS (AutoQoS) simplifies the QoS settings of a VoIP network by issuing interfaces and global switch commands for detecting Cisco IP phones, classifying traffic classes, and configuring egress queues.
2,The auto-detection feature on each 10/100 port detects the speed of the connected device and automatically sets the port to 10 বা 100 এমবিপিএস, simplifying switch deployment in mixed 10 এবং 100 Mbps environments.
3,The auto-negotiation function on all ports can automatically select half-duplex or full-duplex transmission mode to optimize bandwidth.
Dynamic Port Aggregation Protocol (ডিটিপি) enables dynamic port aggregation settings on all switch ports.
4 পোর্ট অ্যাগ্রিগেশন প্রোটোকল (পিএজিপি) can automatically create Cisco Fast EtherChannel Groups or Gigabit EtherChannels to connect to another switch, রাউটার, or server.
5 Port Aggregation Control Protocol (LACP) allows users to create Ethernet channels using IEEE 802.3ad compliant devices. This feature is similar to Cisco EtherChannel technology and PAgP.
6 The DHCP server is a convenient deployment option for assigning IP addresses to networks that do not have a dedicated DHCP server.
7 DHCP relay allows a DHCP relay agent to broadcast DHCP requests to the network DHCP server.
8 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, 1000BASE-BX, 100BASE-FX, 100BASE-LX10, 100BASE-BX, and coarse wave division (CWDM) physical interfaces can be passed through a field-replaceable SFP module. Unprecedented flexibility in switch deployment.
9 In order to ensure that the switch can be quickly connected to the network and can transmit traffic with minimal human intervention, there is a default configuration in the flash.
10 If a wrong cable type (crossover or pass-through) is installed on the copper port, the media-dependent interface crossover (automatic MDIX) can automatically adjust the transmit and receive pairs.
11 Time Domain Reflectometry (TDR) diagnoses and resolves cabling problems on copper ports.
