AOC QSFP-H40G-AOC10M is 40GBase-AOC QSFP direct-attach Active Optical Cable, 10-meter
AOC QSFP-H40G-AOC10M Product Overview
The cable features high performance, low loss and low cost, compared with DAC, it is lighter in weight, longer in transmission distance, and free from electromagnetic interference, and is often used for connections between 10m and 30m, with a transmission distance of 1 to 150m.
QSFP to QSFP copper direct-attach 40GBASE-CR4 cables are suitable for very short distances and offer a flexible way to connect within racks and across adjacent racks. Active optical cables are much thinner and lighter than copper cables, which makes cabling easier. Active optical cables enable efficient system airflow and have no EMI issues, which is critical in high-density racks. We currently offers active optical cables in lengths of 1, 2, 3, 5, 7, 10, 15, 20, 25 এবং 30 মিটার.

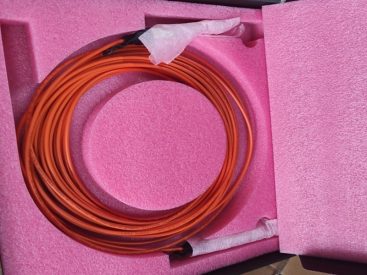

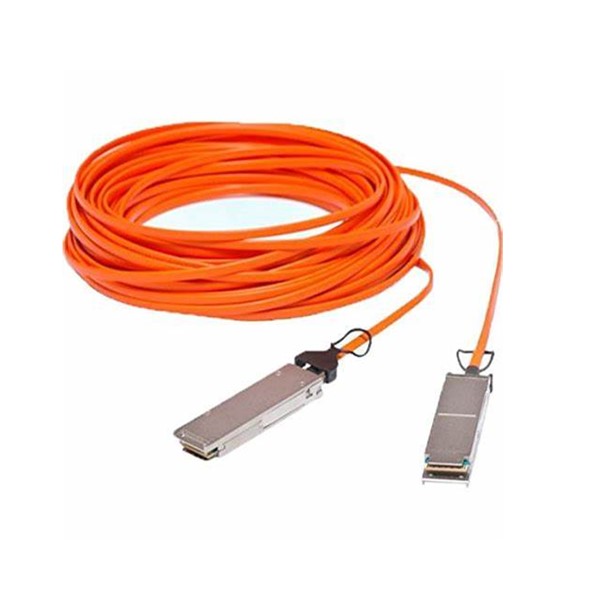

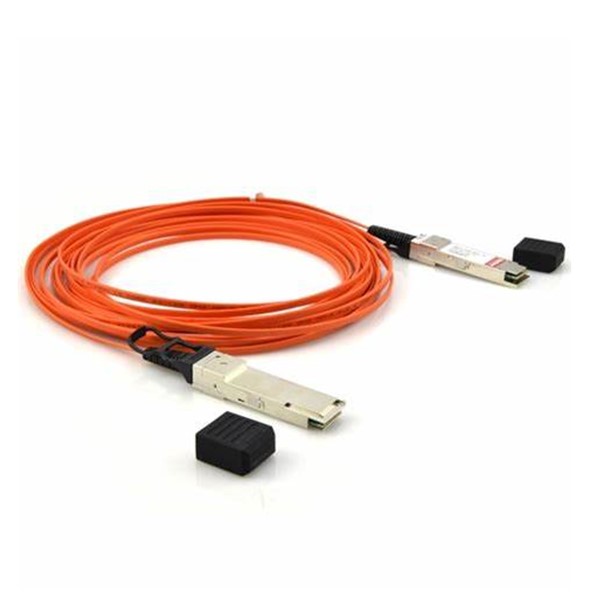

AOC QSFP-H40G-AOC10M Product Pictures
AOC QSFP-H40G-AOC10M Product Specifications
আইটেম | বিস্তারিত |
অংশ সংখ্যা | 02310এসএসএইচ |
মডেল | QSFP-H40G-AOC10M |
বর্ণনা | অপটিক্যাল ট্রান্সসিভার,QSFP+,40G,(850nm,10মি,এওসি) |
সংযোগকারী X1 | QSFP+ |
সংযোগকারী X2 | QSFP+ |
তারের দৈর্ঘ্য [মি(ফুট)] | 10 মি (32.81 ফুট) |
অপারেটিং তরঙ্গদৈর্ঘ্য [nm] | 850 nm |
অপারেটিং তাপমাত্রা [°সে (°ফা)] | 0 °সে থেকে 70 °সে (32 °F to 158 °ফা) |
AOC QSFP-H40G-AOC10M Product Features
- Compliant to the industry standard SFF-8636 QSFP+ Transceiver Specification
- Full duplex 4 channel 850nm parallel AOC
- High reliability 850nm VCSEL array transmitter
- Hot pluggable
- একক 3.3V পাওয়ার সাপ্লাই, কম শক্তি খরচ
- 0 to 70°C case temperature operating range
- RoHS-6 compliant (সীসা মুক্ত)
- Metal enclosure for low EMI
- Distance 1m/2m/3m/5m/7m/10m/15m/20m/30m/50m/100m/150m
- 10GBASE-SR &40GBASE-SR4 40G Ethernet
- Datacom/Telecom Switch & Router connections
- High speed multi-channel parallel data connections
- High performance computing, server and data storage
- Compliant with SFF-8436 Rev 2.7
- Compliant with IEEE 802.3ae
AOC QSFP-H40G-AOC10M and More AOC Cables
SFP-10G-AOC-3M
SFP-10G-AOC10M
QSFP-H40G-AOC10M
QSFP-4SFP10-AOC10M
QSFP-100G-AOC-10M
QSFP-100G-AOC-30M
AOC QSFP-H40G-AOC10M Product Applications
