Beskrywing
Huawei AP8150DN is latest-generation 802.1 1ac wave 2 outdoor access point, which supports 2X2 MU-MIMO and two spatial streams, offering high flexibility with IEEE 802.1 1a/b/g/n/ac compliance. The AP is recommended for use in coverage scenarios (byvoorbeeld, high-densitystadiums, vierkante, pedestrian streets, and amusement parks) and bridging scenarios (byvoorbeeld, wireless harbors, data backhaul, video backhaul, and train-to-ground backhaul).
Huawei AP8150DN Product Overview
Huawei AP8150DN provides services simultaneously on 2.4 GHz en 5 GHz radios to connect more users. It supports wireless bridging, built-in Bluetooth(BLE4.1), and provide gigabit access for wireless users. Daarby, AP8150DN supports WEP, WPAWPA2-PSK, WPAPA2- -PPSK, WPAWPA2-802.1X, and WAPI authentication/encryption modes toensure security of the wireless network. The authentication mechanism is used to authenticate user identities so that only authorized users can access network resources. The encryption mechanism is used to encrypt data transmitted over wireless links toensure that the data can only be received and parsed by expected users.

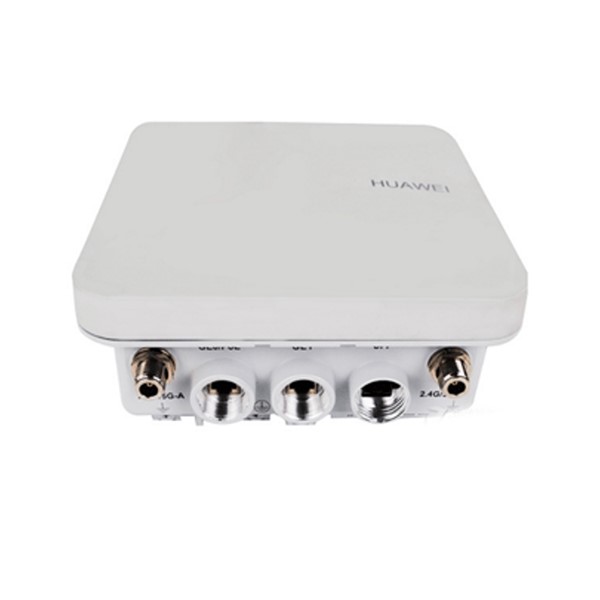

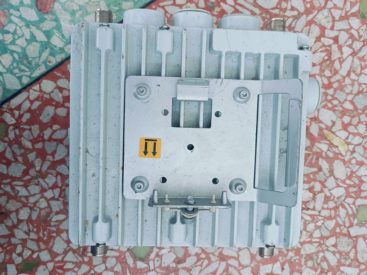

Huawei AP8150DN Product Pictures
Huawei AP8150DN Product Specifications
| Spesifikasies | AP8150DN |
| Afmetings (H x B x D) | 100 mm x 220 mm x 220 mm |
| Krag Invoer | PoE kragbron: In compliance with IEEE 802.3 by |
| Maksimum kragverbruik | AP8050DN: 18W |
| AP8150DN: 18W | |
| Werkstemperatuur | –40°C tot +65°C |
| Antenna tipe | AP8050DN: Built-in directional antennas |
| AP8150DN: Eksterne antennas | |
| Maximum Number of Concurrent Users | ≤ 512 |
| Maksimum oordragkrag | AP8050DN: |
| – 2.4G: 27 dBm (gekombineerde krag) | |
| – 5G: 26 dBm (gekombineerde krag) | |
| AP8150DN: | |
| 2.4G: 27 dBm (gekombineerde krag) | |
| 5G: 24 dBm (gekombineerde krag) | |
| MIMO: Ruimtelike strome | 2 x 2:2 |
| Radioprotokolle | 802.11a/b/g/n/ac/ac Wave 2 |
| Maksimum Tarief | AP8050DN: 1.267 Gbit/s |
| AP8150DN: 1.73 Gbit/s |
Huawei AP8150DN Product Features
- 11ac wave 2 standards compliance, MU-MIMO (2SU-2MU), dienste gelyktydig op 2.4G- en 5G-radio's te lewer; 400 Mbit/s by 2.4 GHz; 867 Mbit/s by 5 GHz; en 1.267 Gbit/s vir die toestel
- AP8150DN can switch from the 2.4 GHz frequency band to the 5 GHz frequency band. When working at dual 5 GHz frequency bands simultaneously, the AP provides a system rate of 1.73 Gbit/s and can function as a relay AP to implement wireless bridging functions, which reduces costs and improves device installation efficiency.
- Ingeboude Bluetooth, allowing for Bluetooth-based application extension.
- Ingeboude 5 kA surge protectors; no additional surge protection device required. This design simplifies installation and saves costs.
- Use a metal shell and heat dissipation design, adapt to a wide temperature range from -40°C to +65°C, provide 6 kA or 6 kV surge protection capability on an Ethernet interface, and IP68 protection level, meeting industry-level use requirements.
- Ondersteun die Vet, Gepas, and cloud modes and enables Huawei cloud-based management platform to manage and operate APs and services on the APs, verminderende netwerk O&M koste
Huawei AP8150DN Product Applications
