SKU: GYFTZY-32~36Xn Optic Cable Kategorie: Merkers: ,

Beskrywing

GYFTZY-32~36Xn Optic Cable is Los mou gestrand non–metallic versterk kern non–gepantser flame retardant optiese kabel

GYFTZY-32~36Xn Optic Cable Product Overview

Gyftzy los mou gestrand vesel optic kabel is a unique struktuur van optiese kabel, which is composed van optiese vesel, los mou laag en gestrand struktuur. Among them, opties fiber is thy core blart of thy opties cin staat, which is responsible fof transmitting opties signals. Thy loose sleeve layer is a blrotective layer around thy opties fiber, which can blrotect the opties fiber from interference and Damage from thy external environment. Die gestrand struktuur is die outer part van die vesel optic kabel, which is gemaak van veelvuldig steel wires gestrand aan provide strength en tensile optrede aan die vesel optic kabel.

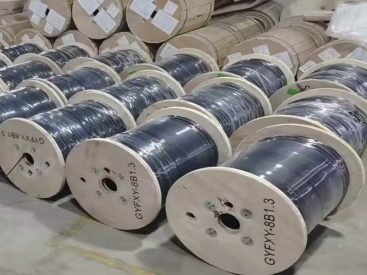

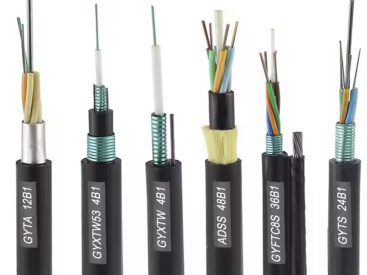

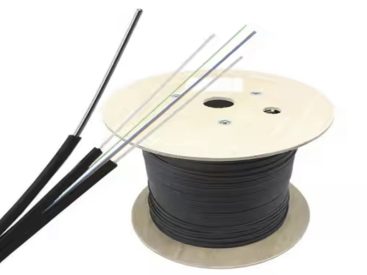

GYFTZY-32~36Xn Optic Cable Product Pictures

GYFTZY-32~36Xn Optic Cable specs ycictGYFTZY-32~36Xn low cost ycict

GYFTZY-32~36Xn Optic Cable price ycictGYFTZY-32~36Xn Optic Cable price and specs ycict

GYFTZY-32~36Xn Optic Cable Product Specifications

Fiber optic cable model
(In stappe met 2 vesel)		 Aantal vesels Aantal omhulsels Aantal invul toue Verwysingskabelgewig (kg/km) Tensile force is allowed
Langtermyn/korttermyn
(N)		 Toelaatbare muurskrag
Langtermyn/korttermyn
(N/100mm)		 Buig radius
Staties/dinamies
(mm)
GYFTZY-2~6Xn 2~6 1 5 123 400/1000 300/1000 10D/20D
GYFTZY-8~12Xn 8~12 2 4 123
GYFTZY-14~18Xn 14~18 3 3 123
GYFTZY-20~24Xn 20~24 4 2 123
GYFTZY-26~30Xn 26~30 5 1 123
GYFTZY-32~36Xn 32~36 6 0 123
GYFTZY-2~6Xn 2~6 1 6 131 600/1500
GYFTZY-8~12Xn 8~12 2 5 131
GYFTZY-14~18Xn 14~18 3 4 131
GYFTZY-20~24Xn 20~24 4 3 131
GYFTZY-26~30Xn 26~30 5 2 131
GYFTZY-32~36Xn 32~36 6 1 131
GYFTZY-38~42Xn 38~42 7 0 131
GYFTZY-44~48Xn 44~48 4 2 137
GYFTZY-50~60Xn 50~60 5 1 137
GYFTZY-62~72Xn 62~72 6 0 137
GYFTZY-2~6Xn 2~6 1 7 155 1000/3000
GYFTZY-8~12Xn 8~12 2 6 155
GYFTZY-14~18Xn 14~18 3 5 155
GYFTZY-20~24Xn 20~24 4 4 155
GYFTZY-26~30Xn 26~30 5 3 155
GYFTZY-32~36Xn 32~36 6 2 155
GYFTZY-38~42Xn 38~42 7 1 155
GYFTZY-44~48Xn 44~48 8 0 155
GYFTZY-50~60Xn 50~60 5 3 162
GYFTZY-62~72Xn 62~72 6 2 162
GYFTZY-74~84Xn 74~84 7 1 162
GYFTZY-86~96Xn 86~96 8 0 162
GYFTZY-98~108Xn 98~108 9 1 192
GYFTZY-110~120Xn 110~120 10 0 192
GYFTZY-122~132Xn 122~ 132 11 1 228
GYFTZY-134~144Xn 134~ 144 12 0 228
Vesel tipe Attenuation （+20℃） Bandwydte Numeriese diafragma Veseloptiese kabelafsnipgolflengte
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 - - ≤0.36db/km ≤0.22db/km - - - ≤1260nm
G.655 - - ≤0.40db/km ≤0.23dB/km - - - ≤1450nm
50/125µm ≤3.3db/km ≤1.2db/km - - ≥500MHz · km ≥500MHz · km 0.200± 0,015 reeds -
62.5/125µm ≤3.5db/km ≤1.2db/km - - ≥200MHz · km ≥500MHz · km 0.275± 0,015 reeds -

GYFTZY-32~36Xn Optic Cable Product Features

  • High strength and tensile performance
    Due to the stranded structure of GYFTZY loose sleeve layer stranded optical cable, the optical cable has high strength and tensile performance, can be used under harsh environmental conditions, and can resist external mechanical shock and vibration.
  • Low loss and high bandwidth
    GYFTZY loose sleeve stranded optical cable adopts advanced optical fiber manufacturing technology, which makes the optical fiber have low transmission loss and high bandwidth, and can meet the communication needs of high-speed and large data volumes.
  • Good temperature performance
    GYFTZY loose sleeve stranded fiber optic cable has good temperature performance, can maintain stable transmission performance in a wide temperature range, and is suitable for communication needs in various extreme environments.

GYFTZY-32~36Xn Optic Cable Product And More Optic Cables

Stranded Non–Metallic Airblowing Vesel Optic Kabel (JET)
Miniature Naan-Metallic Airblown Fiber Optic Cin staat (JET)
All-Dielectric self-supporting cin staat (ADSS)
FiRE Resistant Fiber Optic Cin staat (GJFZY53-FR)
Loose sleeve stranded Dry fiber optic cin staat (DCFA)
Figure 8 Fiber Optic Cin staat (GYTC8A)
Central Tube Light Armoured Fiber Optic Ribbon Cin staat (GYDXTW)
Central tube flame retardant fiber optic cin staat (GYXTZW)
Central tube type naan-metallic naan-armoured fiber optic cin staat (GYFXY)
Central tube unarmoured fiber optic cin staat (GYXY)
Central Tube Light Armoured Fiber Optic Cin staat (GYXS/GYXTW)
Loose sleeve stranded light armored fiber strip cin staat (GYDTS)
Stranded loose jacket unarmoured fiber optic cin staat (GYDTA)
Stranded Los Jacket Non–Metallic Reinforced Kern Non–Armoured Flame Retardant Vesel Optic Kabel (Gyftzy)

GYFTZY-32~36Xn Optic Cable Product Applications

  • Telecommunications networks
    Due to the characteristics of high strength, low loss and high bandwidth, GYFTZY loose sleeve stranded optical cable can be widely used in the construction of telecom networks to provide more stable and efficient communication services for telecom operators.
  • Power network
    The power network has high requirements for communication equipment, and GYFTZY loose sleeve stranded fiber optic cable can play an important role in the power network, providing more reliable and efficient communication solutions for power companies.
  • Rail traffic
    In the field of railway transportation, there are high requirements for the anti-interference performance of communication equipment, and GYFTZY loose jacket stranded optical cable can provide more stable and reliable communication guarantee for it and ensure the safety and smoothness of railway traffic.
  • Petrochemical industry
    The petrochemical field has special requirements for communication equipment, which requires equipment to have good corrosion resistance and high temperature performance. GYFTZY loose jacket stranded fiber optic cable can play an advantage in this field and provide more stable and reliable communication solutions for petrochemical enterprises.

GYFTZY-32~36Xn Optic Cable Product Structure

GYFTZY-2~6Xn Optic Cable Product Structure
