GYFTZY-2~6Xn Optic Cable is Los mou gestrand non–metallic versterk kern non–gepantser flame retardant optiese kabel
GYFTZY-2~6Xn Optic Cable Product Overview
The structure of the GYFTZY fiber optic cable is that a 250μm fiber is sleeved into a loose tube made of high-modulus material, which is filled with a water-repellent compound. At the center of the core is a glass fibre reinforced plastic (FRP) buis (and filler rope) twisted around the central reinforcing core to form a compact and round core, and the gaps in the core are filled with water-blocking filling. The cable core is extruded with a layer of flame retardant sheath to form a cable.

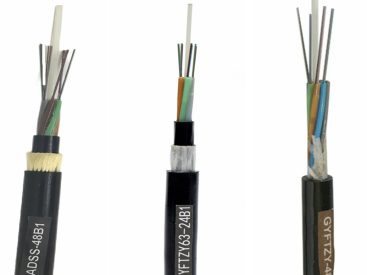

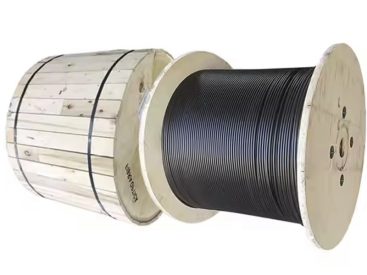

GYFTZY-2~6Xn Optic Cable Product Pictures
GYFTZY-2~6Xn Optic Cable Product Specifications
| Fiber optic cable model (In stappe met 2 vesel) |
Aantal vesels | Aantal omhulsels | Aantal invul toue | Verwysingskabelgewig (kg/km) | Tensile force is allowed Langtermyn/korttermyn (N) |
Toelaatbare muurskrag Langtermyn/korttermyn (N/100mm) |
Buig radius Staties/dinamies (mm) |
|
| GYFTZY-2~6Xn | 2~6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~ 132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~ 144 | 12 | 0 | 228 | ||||
| Vesel tipe | Attenuation （+20℃） | Bandwydte | Numeriese diafragma | Veseloptiese kabelafsnipgolflengte | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36db/km | ≤0.22db/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40db/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3db/km | ≤1.2db/km | — | — | ≥500MHz · km | ≥500MHz · km | 0.200± 0,015 reeds | — |
| 62.5/125µm | ≤3.5db/km | ≤1.2db/km | — | — | ≥200MHz · km | ≥500MHz · km | 0.275± 0,015 reeds | — |
GYFTZY-2~6Xn Optic Cable Product Features
- Very good mechanical and temperature properties
- The loose tube material itself has good hydrolysis resistance and high strength
- The tube is filled with a special paste to protect the optical fiber
- Special sheath material with excellent flame retardant properties
- Good compression resistance and softness
- The following measures are taken to ensure the waterproof performance of the cable:
- Single non-metallic center reinforcing core
- The loose tube is filled with a special waterproofing compound
- Full core filling
GYFTZY-2~6Xn Optic Cable and More Optic Cables
Gestrande los baadjie Nie-metaalversterkte kern nie-bewoer vlamvertragende veseloptiese kabel (Gyftzy)
Los mou gestrand versterkte kern gepantserde vlamvertrager optiese kabel(Gytza53)
Los mou gestrand nie-metaalversterkte kern gepantserde vlamvertrager veseloptiese kabel (Gyftza53)
Gestrande vlamvertragende veseloptiese kabel (Gytzs)
Gestrande los baadjie nie-bewoer vlam retardante vesel optiese kabel (Gytza)
Gestrande los mou nie-metaalversterkte kern gepantserde veseloptiese kabel (CYFTA53)
Gestrande nie-metaalversterkende versterkende optiese veselkabel (CYFTY53)
Gestrande los baadjie nie-metaalversterkte kern sonder bewapening van veseloptiese kabel (SAAM)
Los mou gestrand nie-metaalversterkte kernoptiese kabel (Gyhty)
Gestrande los baadjie nie-metaalversterkte kern sonder bewapening van veseloptiese kabel (Niggie)
Los mou gestrand enkel dun dun ronde staal draad gepantserde vesel optiese kabel (Gyta53 33)
Los mou gestrand versterkte gepantserde veseloptiese kabel(Gyta53)
Los mou gestrand gewone gepantserde veseloptiese kabel(Gyty53)
Los mou gestrand ligte gepantserde veseloptiese kabel (Konsonant)
Gestrande los baadjie Ongewerpte veseloptiese kabel (Beklemtoon)
GYFTZY-2~6Xn Optic Cable Product Applications
Toepassing: pipelines, overhead
