Beskrywing
GYDTS-48Xn Optic Cable is Loose sleeve stranded lightly armored optical fiber ribbon cable
GYDTS-48Xn Optic Cable Product Overview
The structure of the GYDTS fiber optic cable is to insert 4, 6, 8, en 12 fiber strips into a loose tube made of high-modulus material, and the loose tube is filled with a waterproof compound. In the center of the cable core is a metal reinforcing core, and for some fiber optic cables, a layer of polyethylene (PE) is squeezed out of the metal reinforcing core. The loose tube and the filling rope are twisted around the central reinforcing core to form a compact and round core, and the gaps in the core are filled with water-blocking filler. Double-sided plastic-coated steel tape (PSP) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.

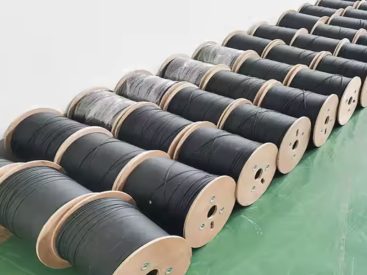

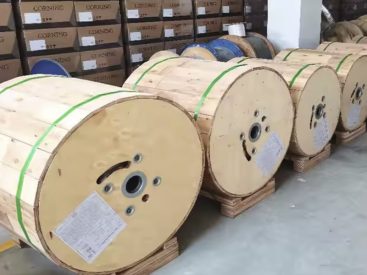

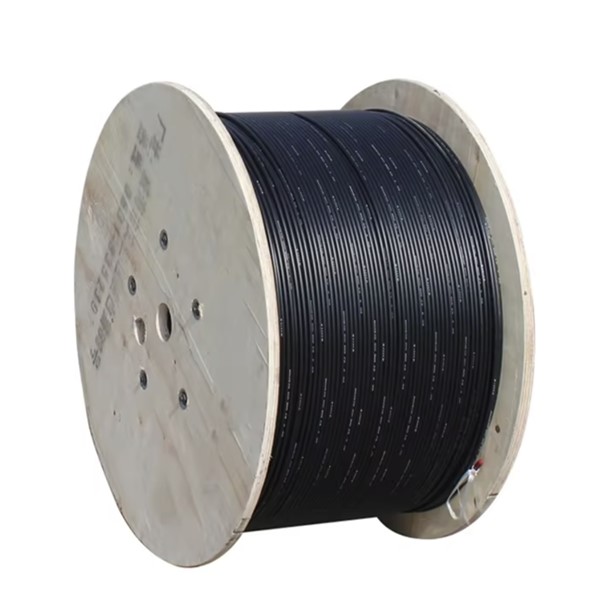

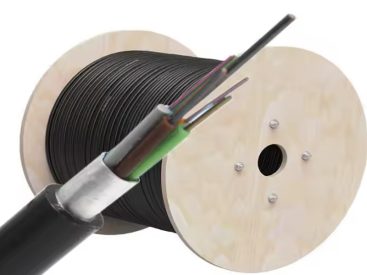

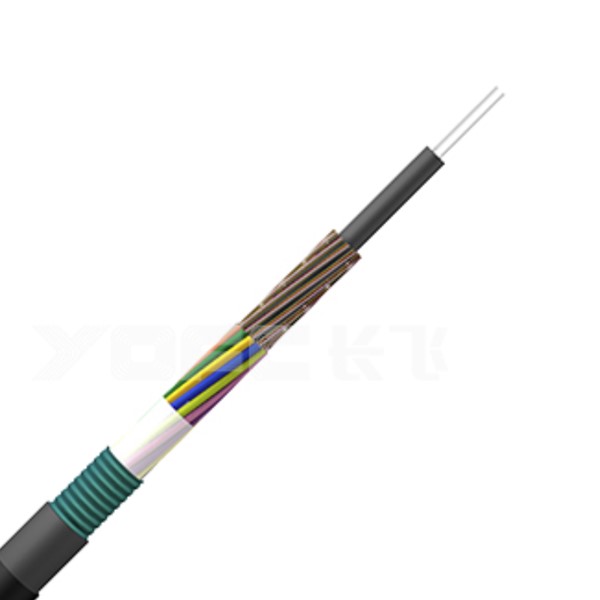

GYDTS-48Xn Optic Cable Product Pictures
GYDTS-48Xn Optic Cable Product Specifications
| Fiber optic cable model (In stappe met 2 vesel) |
Aantal vesels | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Langtermyn/korttermyn (N) |
Toelaatbare muurskrag Langtermyn/korttermyn (N/100mm) |
Buig radius Staties/dinamies (mm) |
|
| GYDTS-48Xn | 4×12 | 1 | 3 | 306 | 600/1500 | 300/1000 | 10D/20D | |
| GYDTS-96Xn | 8×12 | 2 | 2 | 306 | ||||
| GYDTS-144Xn | 12×12 | 3 | 1 | 306 | ||||
| GYDTS-216Xn | 18×12 | 4 | 0 | 306 | ||||
| GYDTS-288Xn | 24×12 | 4 | 0 | 338 | ||||
| GYDTS-360Xn | 30×12 | 5 | 0 | 338 | ||||
| GYDTS-432Xn | 36×12 | 6 | 0 | 447 | ||||
| Vesel tipe | Attenuation （+20℃） | Bandwydte | Numerical aperture | Veseloptiese kabelafsnipgolflengte | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36db/km | ≤0.22db/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40db/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3db/km | ≤1.2db/km | — | — | ≥500MHz · km | ≥500MHz · km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5db/km | ≤1.2db/km | — | — | ≥200MHz · km | ≥500MHz · km | 0.275±0.015 NA | — |
GYDTS-48Xn Optic Cable Product Features
• Very good mechanical and temperature properties
• Die los buismateriaal self het goeie hidrolise -weerstand en hoë sterkte
• The tube is filled with a special paste to protect the optical fiber
• Specially designed tight cable structure to effectively prevent the casing from retracting
• Good compression resistance and softness
• The PE sheath has very good resistance to ultraviolet radiation
• Adopt YOFC 4, 6, 8, 12 core fiber strips, flexible application
• The following measures are taken to ensure the waterproof performance of the cable:
– Single wire center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling
– Double-sided plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables

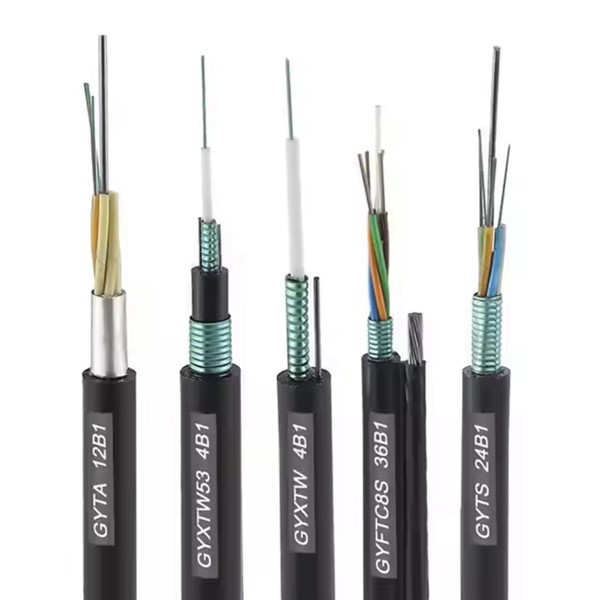

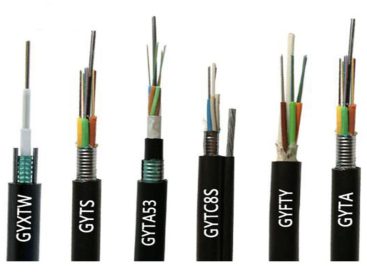

GYDTS-48Xn Optic Cable Product And More Optic Cables
Loose sleeve stranded light armored fiber strip cable (GYDTS)
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (SAAM)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
Loose sleeve stranded light armored fiber optic cable (GYTS)
Stranded loose jacket unarmoured fiber optic cable (GYTA)
GYDTS-48Xn Optic Cable Product Applications
Toepassing: pipeline, overhead, direct burial

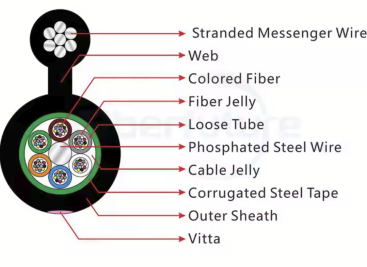

GYDTS-48Xn Optic Cable Product Structure
