Beskrywing
GM620 FTTH is an optical network terminal with 4GE Port 1 POTS 2USB Port and 2.4G/5.8G Dual band Wifi, providing a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment
GM620 FTTH Product Overview
GM620 FTTH, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. Op dieselfde tyd, GM620 FTTH provides 4ge+1tel+2usb+Ac 5g Wifi. The product features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet- en HD-videodienste. With the speed of up to 1200Mbps, it can provide users with extraordinary smooth internet surfing, internet phone calling, and on-line gaming. Bowendien, by adopting external Omni-directional antenna, GM620 could greatly increases the wireless range & sensitivity, which enables you to receive wireless signals in the farthest corner of the home or office. GM620 FTTH provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment

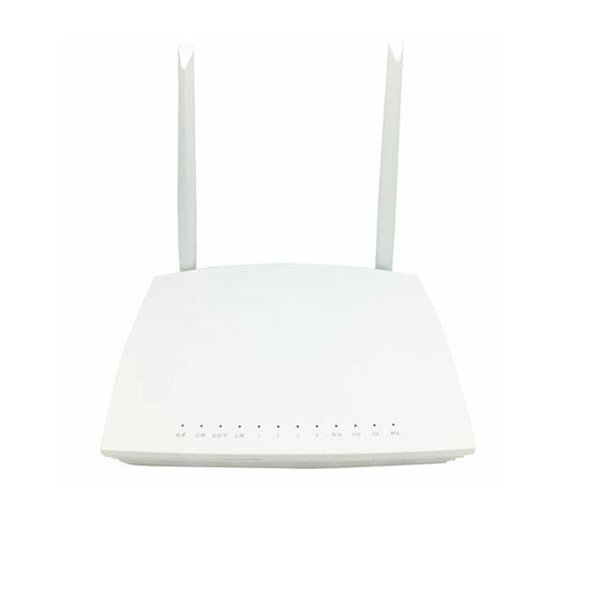

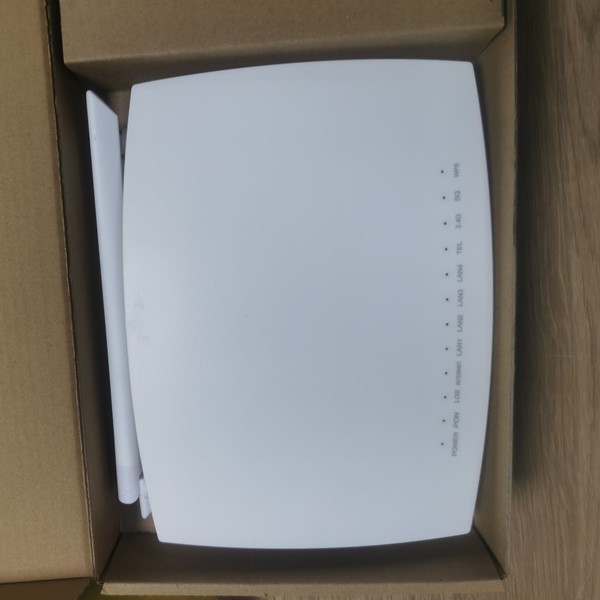

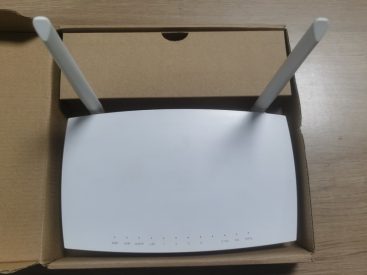

GM620 FTTH Product Pictures
GM620 FTTH Product Specifications
| Item | Beskrywings |
| Model | GM620 |
| Optiese koppelvlak | SC/UPC interface |
| UNI | 4GE+2.4G/5.8GWIAN+ 2USB+ 1Tel |
| WiFi standard | 2.4GHz: 2 x 2 MIMO 802.11b/g/n |
| 5GHz: 2 x 2 MIMO 802.11a/n/ac | |
| Antenna wins | 5dBi |
| Afmetings(Breedte×Diepte×Hoogte) | 30mm x 200mm x 150mm |
| Kragtoevoer | Kragtoevoer: 11-14V DC, 1.5A Input power: 100-240V AC, 50/60Hz |
| Operating temperature and operating humidity | -5ºC tot 45ºC |
| 5% aan 95%, nie-kondenserend | |
| Verkoeling | Passive cooling |
| Maximum number of MAC addresses learned | 1024 |
| L2-aanstuurvermoë | Stuur pakkies van enige lengte teen draadspoed aan |
| IPv4 L3-aanstuurvermoë | 2Gbit/s met pakkies van enige lengte in stroomaf rigting |
| 1Gbit/s met pakkies van enige lengte in stroomop rigting | |
| IPv6 L3-aanstuurvermoë | 2Gbit/s met pakkies van enige lengte in stroomaf rigting |
| 1Gbit/s met pakkies van enige lengte in stroomop rigting | |
| Konfigurasie metode | NMS, Web, of TR069 |
| Stem protokol | SIP en H.248 |
GM620 FTTH Product Features
- High-end home gateway in FTTH solution, offering advanced connectivity and networking capabilities.
- Utilizes GPON technology to deliver ultra-broadband access, catering to the needs of both home and SOHO users.
- Equipped with 4GE ports, 1 telephone port (tel), en 2 USB-poorte, providing versatile connectivity options.
- Features advanced AC 5G WiFi, ensuring high-speed wireless connectivity for multiple devices.
- High-performance forwarding capabilities ensure seamless experiences with VoIP, Internet, and HD video services.
- Represents a perfect terminal solution for FTTH deployment, meeting both current and future connectivity needs with its forward-looking design and capabilities
GM620 FTTH Product Applications
